3 in 1 Mig Tig MMA Welder 200A Gasless Flux Core Inverter Welding Machine
You're halfway through fixing something when your welder just can't do what you need. Hauling different machines around or stopping to switch gear kills your whole afternoon. Handle stick welding for repairs, wire welding for thick metal, and clean TIG work for aluminum parts.
Flip the switch to pick stick, wire, or TIG mode depending on what you're working on. Turn the knob to set how much power you need for your metal thickness. The screen shows you the exact number, and the wire feeds through smooth when you're doing wire welding.
Plugs into regular 110V outlets or 220V without needing anything extra. Goes from 20 amps all the way up to 200 amps in any mode, so you can weld thin stuff or really thick steel. IGBT tech keeps your arc steady and runs at 85% efficiency.
That's not all! You get 60% duty cycle at 200 amps so you can weld longer without cooldown breaks. VRD and IP21S protection guard against voltage spikes, dust, and water getting inside. Spool lock, spring, and spacer keep wire feeding smooth, plus you pick the base unit or bundle with TIG torch too.
-
THREE MODE WELDING SYSTEM: Switch between stick, wire feed, and TIG modes instantly to handle any metal project without changing machines.
-
DUAL VOLTAGE COMPATIBILITY: Works with both 110V and 220V power sources so you can weld anywhere without adapters or rewiring your shop.
-
20 TO 200 AMP RANGE: Adjustable current covers everything from thin sheet metal at 20 amps up to heavy structural steel at full 200 amp output.
-
IGBT INVERTER TECHNOLOGY: Advanced circuitry delivers smooth, stable arcs with 85% efficiency so you get consistent welds and lower power bills.
-
60% DUTY CYCLE RATING: Weld continuously for 6 minutes out of every 10 at maximum 200 amp output before needing a cooldown break.
-
VRD AND IP21S PROTECTION: Built in voltage reduction and sealed housing guard you against electrical spikes, dust intrusion, and water splashes during operation.
-

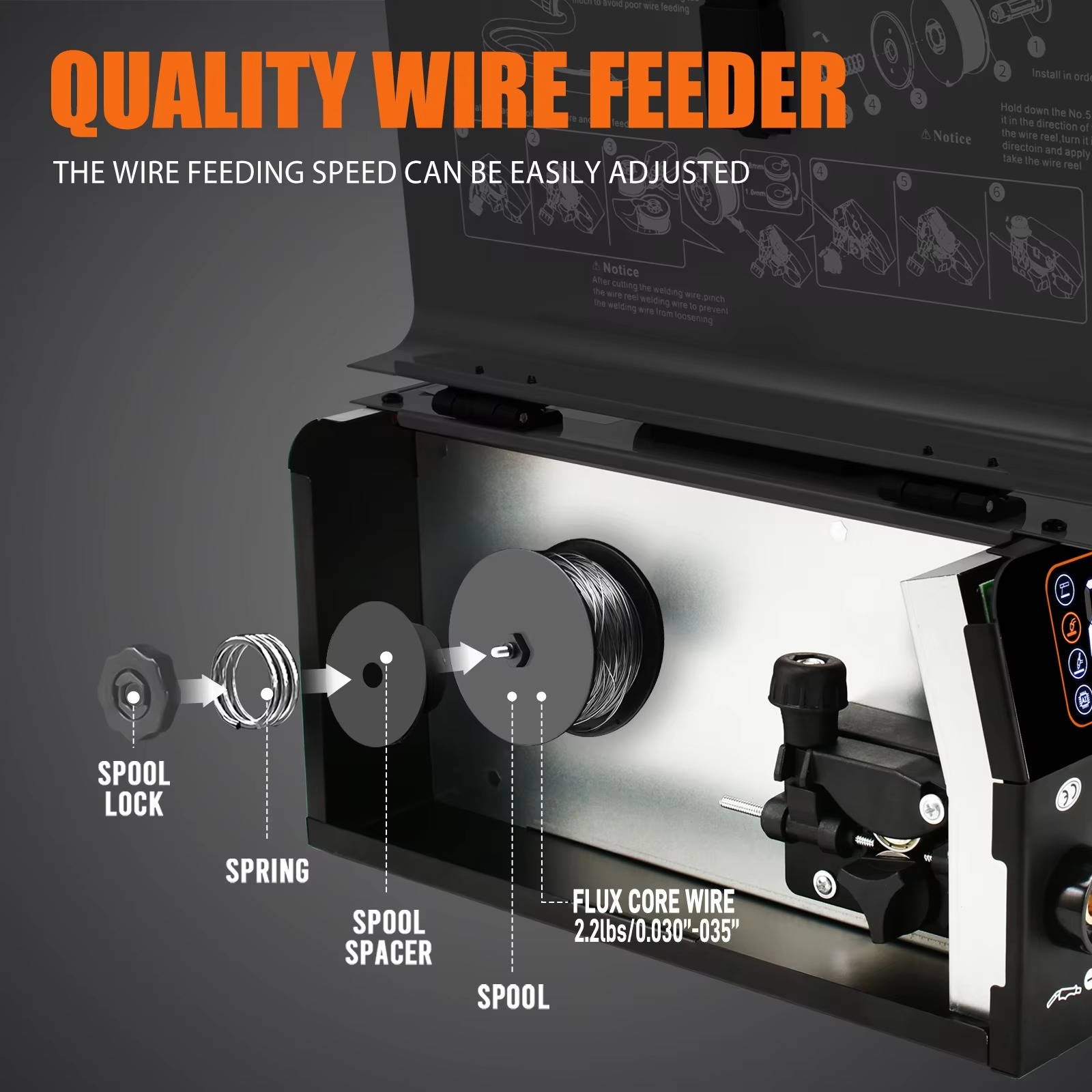

SMOOTH WIRE FEED SYSTEM: Spool lock, tension spring, and spacer assembly keep your wire pulling evenly through the gun for clean, consistent MIG welds.
-
COMPACT 8.2 LB DESIGN: Weighs just 8.2 pounds and measures 6.7 x 6 x 6.1 inches so you can carry it anywhere and store it easily.
3 IN 1 MIG TIG MMA WELDER 200A GASLESS FLUX CORE INVERTER WELDING MACHINE SPECS
-
Welding Modes: MIG / TIG / MMA
-
Input Voltage: AC 110V/220V ±10%
-
Frequency: 50/60Hz
-
MMA Input Power: 9 KVA/ 13.4 KVA
-
MMA Input Current: 82A/ 70.3A
-
MMA Output Current: 20 to 200A/ 30 to 200A
-
MMA Output Voltage: 24V/ 28V
-
MMA No Load Voltage: 54V/ 55V
-
Duty Cycle: 60%
-
Efficiency: 85%
-
Power Factor: 0.73
-
Protection Class: IP21S
-
Insulation Class: F
-
Technology: IGBT Inverter
-
Safety Features: VRD Protection
-
Cooling System: Active Fan
-
Dimensions: 6.7 x 6 x 6.1 inches
-
Weight: 8.2 lbs
-

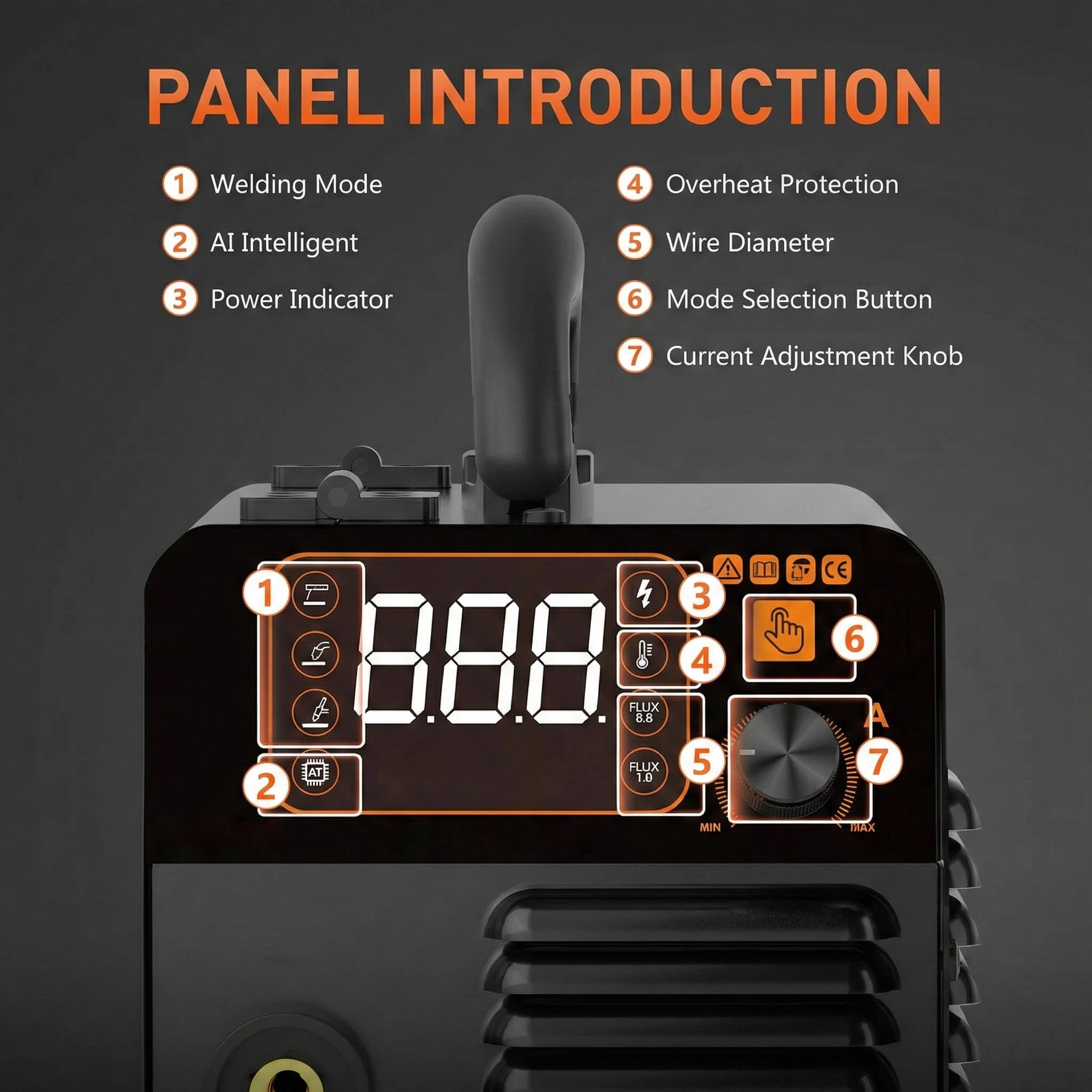

Display: Digital Screen
-
Controls: Mode Selector Button
-
Current Adjustment: Rotary Knob
-
Wire Feed: Spool System

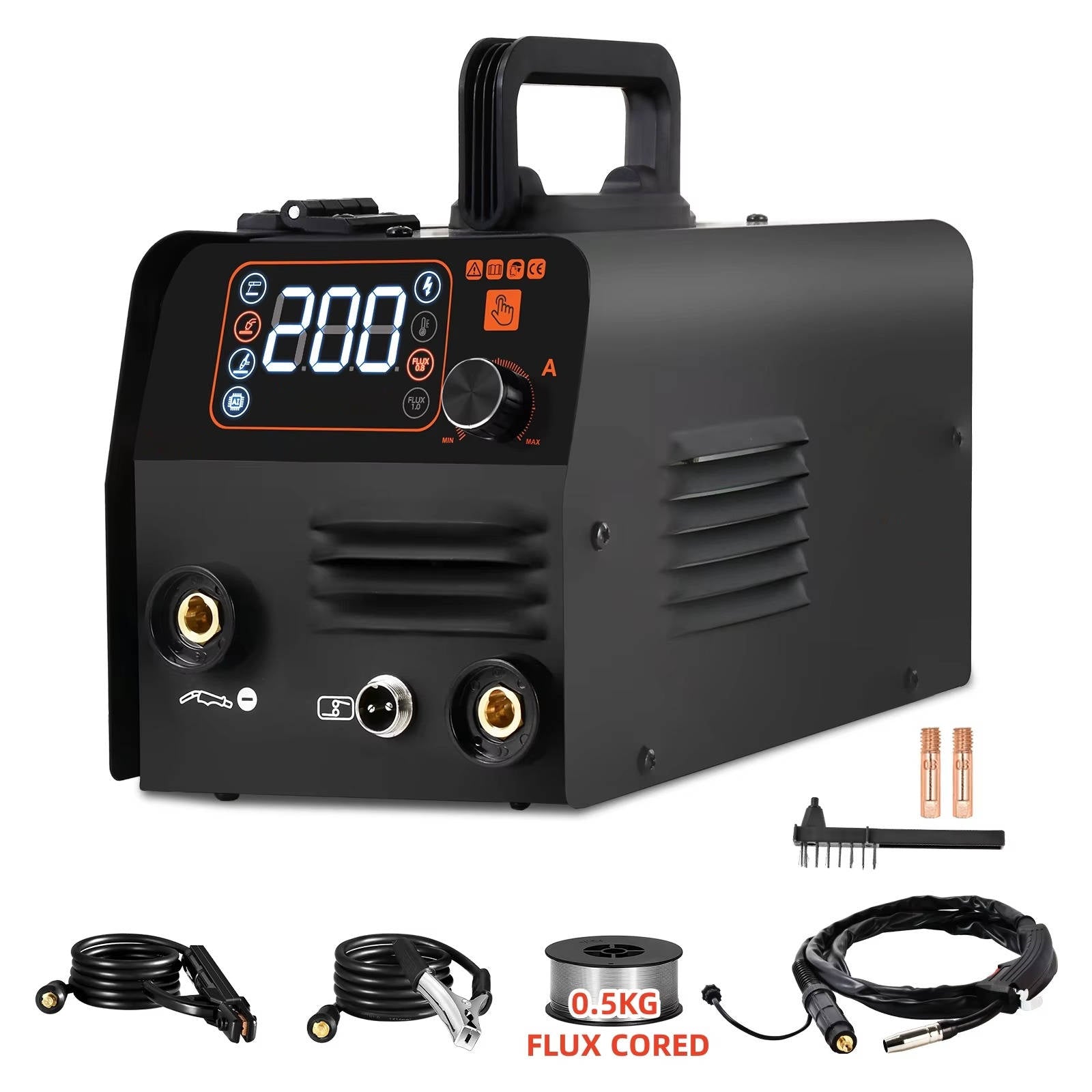

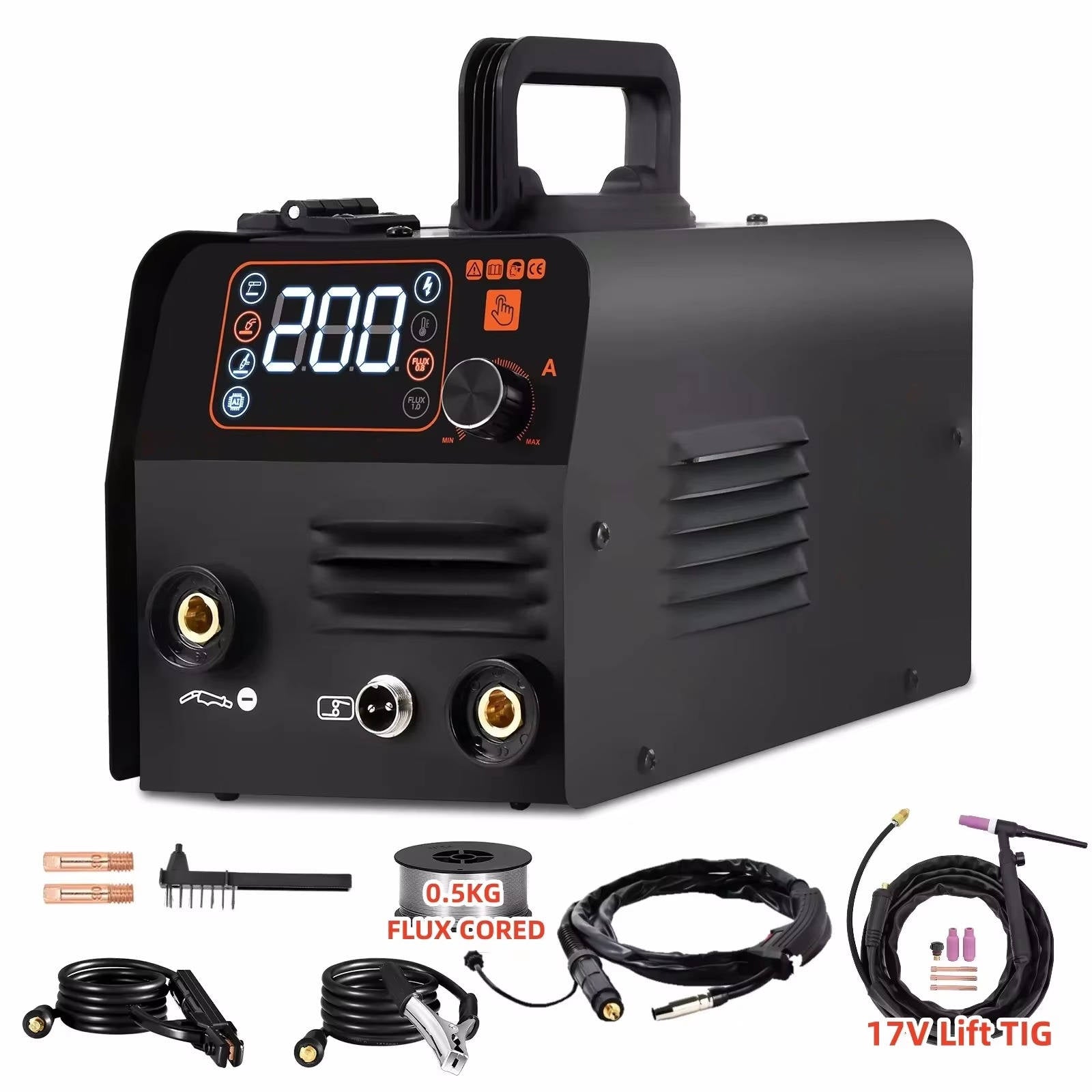

PACKAGE INCLUDES:
-
1 x3 in 1 Inverter Welding Machine
-
1x MIG Gun 7.9ft
-
1x Flux Core Wire 1lb .030
-
1x Electrode Holder 4.9ft
-
1x Conductive Nozzle
-
5x Welding Rod
-
1x Hammer
-
1x Earth Clamp 4.9ft
-
1x Manual
-
1x 17V Lift TIG Torch (Model Specific)
